Scout Monitoring System

Features:
Easy Installation
Monster LCD Screen
Better Price
Stand Alone Operation
EGT Kit available USB Updatable
Custom Tuning
Modular Design
Best Warranty and Reliability

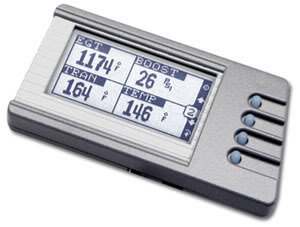

The Scout Monitoring System from Quadzilla stems from the most successful stand alone gauge system in the diesel performance industry. While the look and feel of the Scout is very similar to its predecessor, the Commander Monitoring System, don’t be confused as they are very different!
This new monitoring system was designed from the ground up as a modular design to extract the most important data from your engine while keeping cost and installation difficulty to a minimum. Anyone can have the Scout up and running in minutes!

One of the unique aspects of this product is that it is available for many of the older but very popular diesel trucks. Something our competitors cannot say!

This product is designed to work with any and all plug in modules, chips and programmers.

Performance Test
(standard feature on all Scout Monitoring Systems)
0-60 Times
¼ Mile times with 60’ and 1/8 mile times included

The modular aspect of the Scout is unique making it easy to add important accessories that may not be necessary for every vehicle. These items include our 0-100psi transducer kit that allows you to monitor fuel pressure or any other liquid or air pressure you desire. Another very useful accessory is the Turbo Timer kit. This kit allows you to cool your turbo and engine after long hauls, stop and go summer driving or towing. You choose to shut the vehicle down based upon EGT* or Time.

Monitored Parameters by Year Model:
--------------------------------------------------------------------------------

98-00 Dodge 5.9L Cummins
Special Features:

On 98-02 Dodge trucks you also have the added benefits of being able to increase fuel mileage and performance with the Scout! No other parts are needed, just a simple USB update that is available for an incredible price. This option provides you with the following features:

Max Mileage setting: 8-12% increase in fuel mileage
Performance setting: 50hp 150ft lbs of torque increase
EGT Defueling
Custom tuning parameters to tune your performance needs to fit your driving style
Parameters Monitored
EGT*
Boost, Coolant Temp
RPM
IAT
TPS%
Fuel Pressure***
ECM Volts
MPH
Corrected MPH
Load%
Engine Oil PSI
Fuel Temp Transmission Slip%
Gear
Torque Converter Lockup Status




--------------------------------------------------------------------------------

01-05 Dodge 5.9L Cummins
Special Features:

On 98-02 Dodge trucks you also have the added benefits of being able to increase fuel mileage and performance with the Scout! No other parts are needed, just a simple USB update that is available for an incredible price. This option provides you with the following features:

Max Mileage setting: 8-12% increase in fuel mileage
Performance setting: 50hp 150ft lbs of torque increase
EGT Defueling
Custom tuning parameters to tune your performance needs to fit your driving style
Parameters Monitored
EGT*
Boost, Coolant Temp
RPM
IAT
TPS%
Fuel Pressure***
ECM Volts
MPH
Corrected MPH
Load%
Engine Oil PSI
Fuel Temp Transmission Slip%
Gear
Torque Converter Lockup Status



--------------------------------------------------------------------------------

05.5-07 Dodge 5.9L Cummins

More information coming soon!

Parameters Monitored
RPM
TPS %
Fuel Level %
Ambient Air Temp
Time Since DTC's cleared
Coolant Temp
Load %
Boost
MPH
Run Time Since Startup
Barometer
Time Run with MIL On
Distance since DTC's Cleared
Distance with MIL turned on
Corrected MPH (for different tire sizes)
# of Warmups since DTC's Cleared
IAT
Rail Pressure
Voltage
Converter Status
Current Gear
Calculated Transmission Slippage %


--------------------------------------------------------------------------------
07-09 Dodge 5.9L Cummins
More information coming soon!


--------------------------------------------------------------------------------

01-05 LB7 & LLY GM 6.6L Duramax


Parameters Monitored
EGT*
Boost
Coolant Temp
RPM
IAT
TPS%
Load% MPH
Corrected MPH
Transmission Temperature
Transmission Slip%
Gear
Torque Converter Lockup Status,
Barometric Pressure Transmission Output Shaft Speed
Drivers Demand % Torque
Nominal Friction % Torque
Fuel Pressure***


--------------------------------------------------------------------------------
05.5-07 LLY, LBZ 6.6L Duramax
More information coming soon!


--------------------------------------------------------------------------------

07.5-09 LMM 6.6L Duramax

More information coming soon!

--------------------------------------------------------------------------------

03-07 Ford 6.0L Powerstroke

More information coming soon!

--------------------------------------------------------------------------------

08-09 Ford 6.4L Ford Powerstroke

More information coming soon!

--------------------------------------------------------------------------------

* = requires purchase of the EGT kit
*** = purchase of a fuel pressure kit is required
